Project · Duck Creek Village, Utah
A Cabin Mini-Split at 8,500 Feet
Duck Creek Village sits on the edge of Cedar Mountain in Kane County, Utah, at roughly 8,507 feet. The cabins up there were mostly built without ductwork, they see real snow, and half of them sit empty through the coldest months. This is a ductless mini-split going into one of them.
What makes a mountain cabin different
An install at Duck Creek is not a St. George install done further from town. Four things change, and all four change the equipment selection.
8,500 feet of elevation
Duck Creek Village sits at roughly 8,507 feet on the edge of Cedar Mountain in Kane County. Air is thinner, equipment is rated differently, and a system sized off a St. George rule of thumb will be wrong.
Real winter, not desert winter
Cedar Mountain gets deep snow. Outdoor unit placement has to account for snow load and drift, which usually means bracket mounting or raising the unit off the ground rather than setting it on a slab.
Cabins rarely have ductwork
Most Duck Creek cabins were built without a central system. Retrofitting ducts into a finished cabin is invasive and expensive, which is exactly the problem a ductless mini-split is built to solve.
Seasonal, sometimes unoccupied
A cabin that sits empty in January needs heat it can hold at a low setpoint to protect the plumbing, and it needs to be controllable remotely. Inverter mini-splits do both.
The job
What the install involved

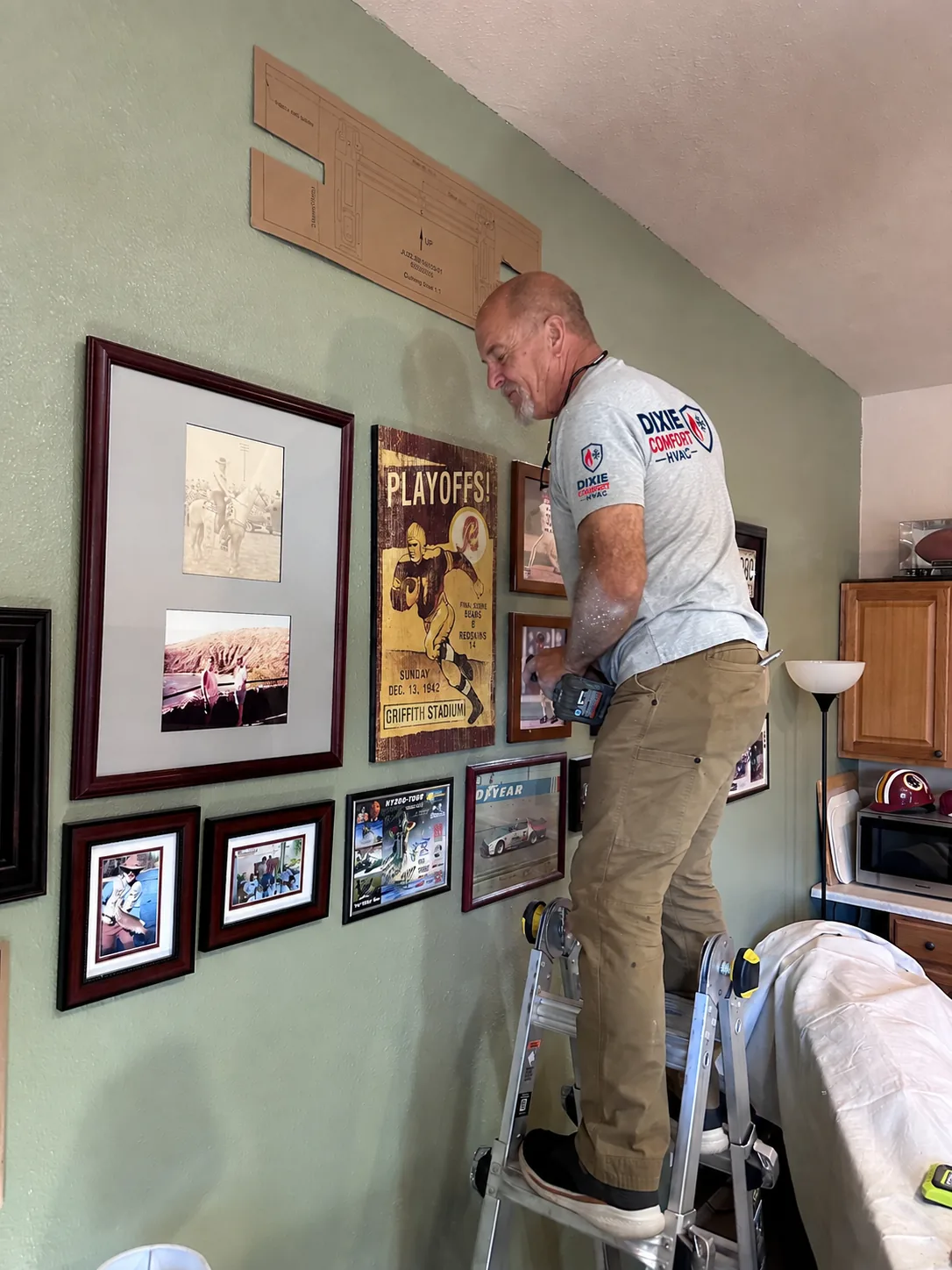

- Indoor head located and templated on an interior wall, set for even throw across the living space

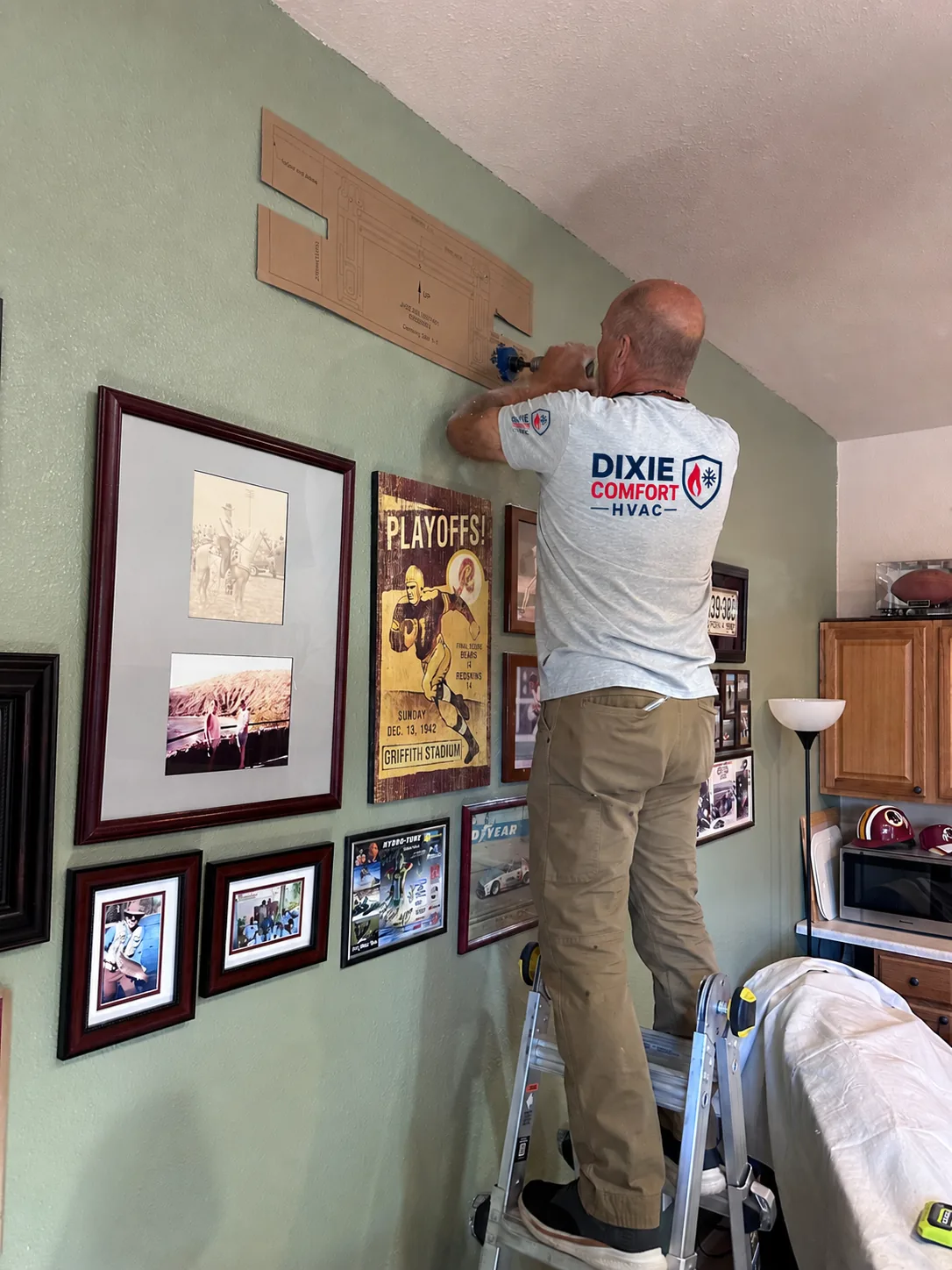

- Mounting plate anchored to framing, not drywall alone

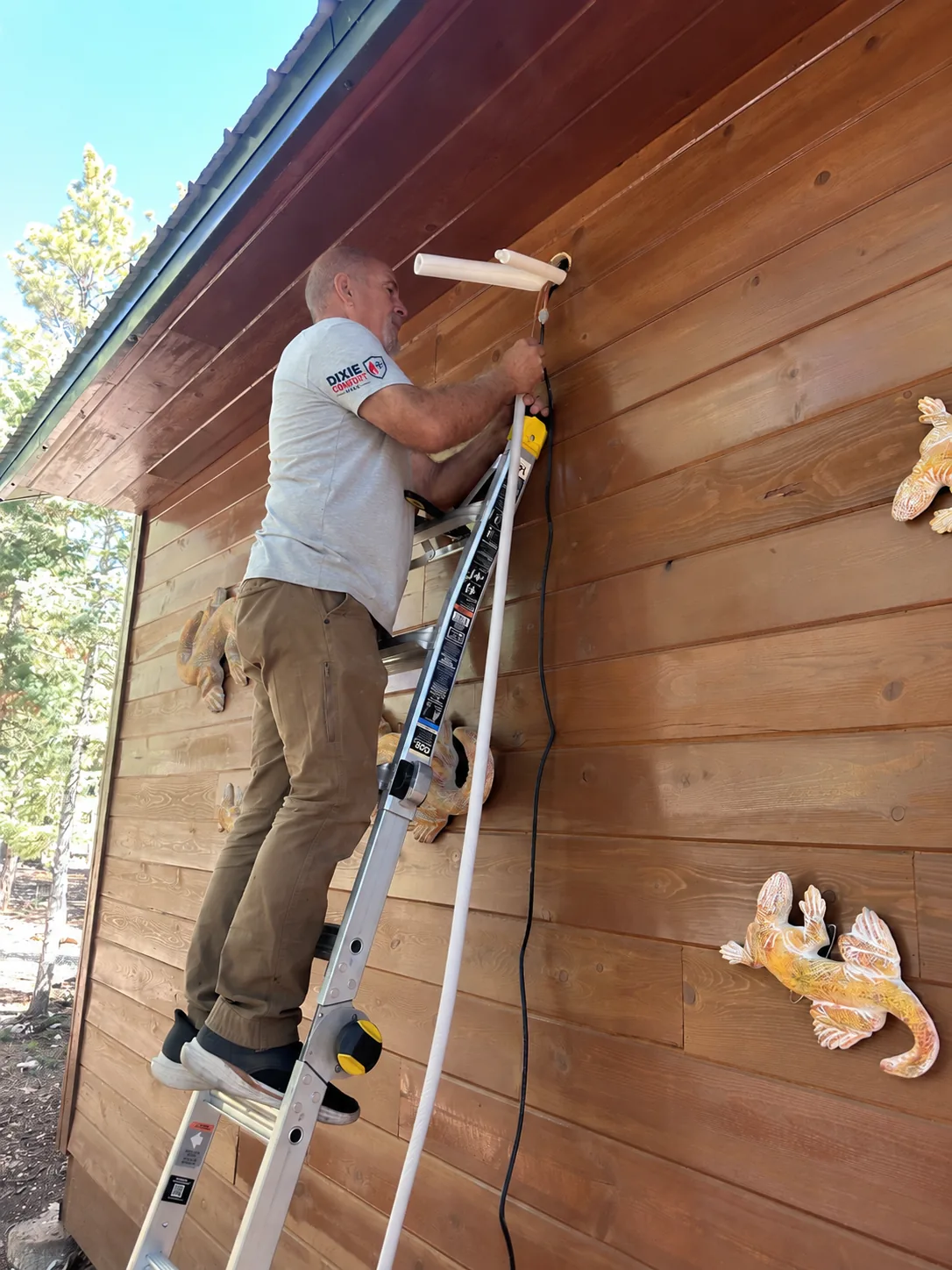

- Line set penetration cored through the cedar lap siding near the eave, pitched to drain
- Refrigerant lines, condensate and power run together in a single sealed, sleeved pass
- Exterior penetration sealed against weather and rodents, which at this elevation matters
- Full vacuum and evacuation of the line set before charging, verified with a micron gauge
- System commissioned, tested in both heating and cooling, and the homeowner walked through the controls
- Furniture and the homeowner's framed gallery wall covered and protected the entire time
The vacuum step is the one nobody sees and the one that decides whether the compressor lasts. Moisture and air left in the line set turn into acid and ice inside the system. It is also the step most commonly skipped on a self-installed unit, which is why a cheap install so often turns into a dead compressor in year two.
Cabins we drive for
Dixie Comfort HVAC is based in St. George and serves Washington County, Iron County, and the Cedar Mountain communities including Duck Creek Village, Navajo Lake, Strawberry Point and the cabin subdivisions off State Route 14.
If you own a cabin up there and you are tired of a wood stove being the only real heat, or you want something you can turn on from your phone the day before you drive up, a ductless mini-split is usually the answer. Call Bret and describe the cabin. He will tell you honestly whether it is worth doing.
